Flat Crush Test



• Average: 0.6” Inifincal 1484 lbf versus 0.5” paper 673 lbf
  • Twice as strong
• Compression at failure: Infinical 9-11% versus paper 42-44%
  • Much less deflection under load

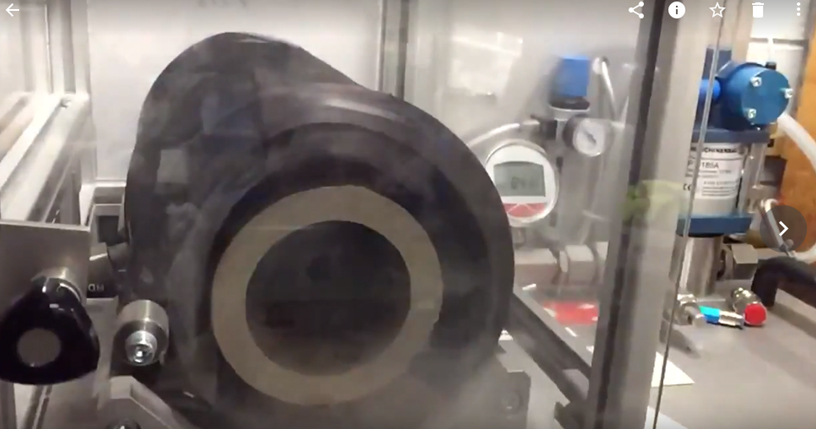

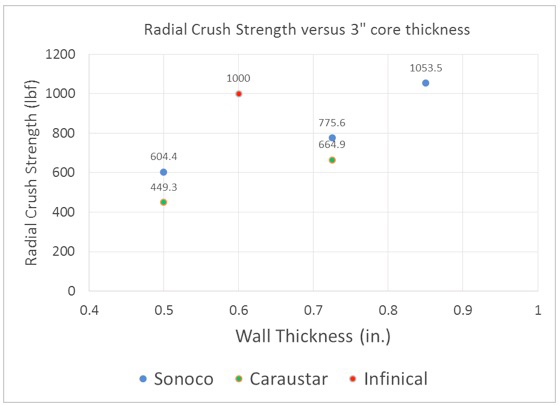

Radial Crush Test

Pallet Test

Wood Pallets

• 29 lbs
• Typically 40 x 48 x 4.75
• Nails

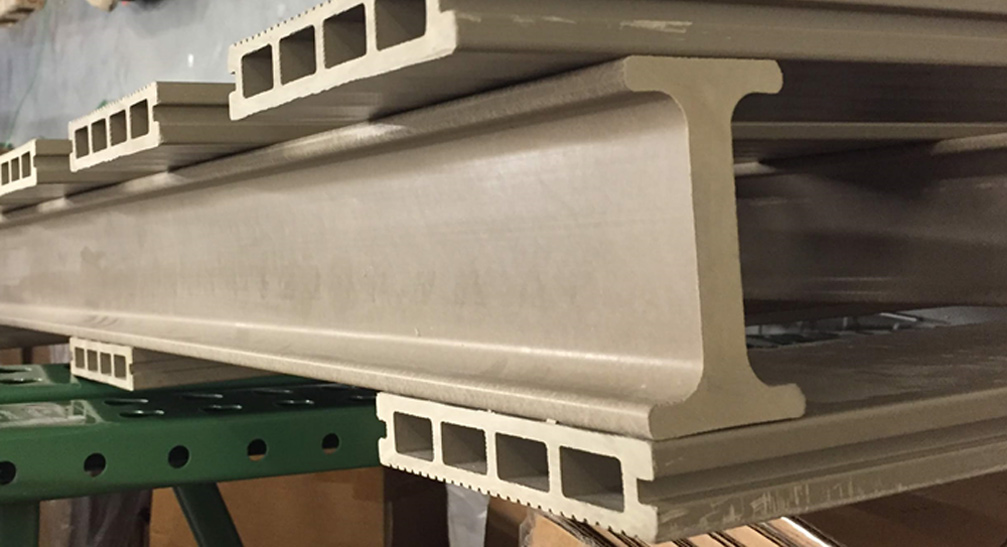

Infinical Pallets

• 64 lbs
• Typically 40 x 40 x 5.75
• Screws
• Need to enclose ends or use solid boards
• Boards are 5 1/2″ X 1″
• I-beams are 2 3/8 x 3 3/4

Pallet Shaker Table Test – CLT

750 lbs of Scrap in Gaylord
35 F Test Temperature
ASTM D4169 Truck Test

• Accelerated Shipping Test
• Internally have found this to be more abusive than actual shipping test
• No Damage other than superficial scratching
